Campbell River Decks and Railings uses an aluminum "picket and glass" railing system for installation on residential and commercial railing applications. Whether you are replacing existing or adding new, our railing systems will complete your deck or patio design with structural integrity and pleasing esthetics.
Railings are the "icing on the cake" when desiging your new outdoor living space. For decks and stairways the railings create ambience, foot traffic flow, privacy, sitting areas and cooking and eating areas.
We have two choices for your railing system, both are powder coated aluminum and engineered to the highest standards. No matter how big or small the application, we have a system that will integrate with any deck, patio or stairway.
All options for future expansion or modification of railing systems are incorporated into our railing design and engineering systems. You won't have to start from scratch if you expand or make a change to your outdoor living space.
Features
Aluminum Railing Systems
Glass railing
With top and bottom rail system
With top and bottom rail system
All picket
Full picket railing post to post
Full picket railing post to post
Deck railings - Patio railings
There are three common types of deck and patio aluminum railing systems.
Each having their own benefits and costs. All deck railing systems that we install meet building code requirements.
Each having their own benefits and costs. All deck railing systems that we install meet building code requirements.
"See View "
No "top or bottom rail" system
No "top or bottom rail" system
Keep in mind even though these are the three most common types of railing systems, we can mix and match designs to compliment view areas and budget needs. The "see view" system being the most popular with view homes is a very specialized piece of equipment do to not having any top or bottom rails. The glass is 10 or 12mm thick tempered, compared to 5 or 6mm for systems with top and bottom rails.
Anatomy of a railing system
Top Rail
Post
Picket or Glass area
Bottom rail
Post Base - top mount or side mount
36" or 42"
see code
requirements below
see code
requirements below
Local building code requirements for railing systems.
- Deck surface below 18" to ground/grade no railing is required under most conditions.
- Deck or Patio surface 18" - 6' above ground/grade you must have a 36" minimum height to the top of the railing system.
- Deck or Patio surface above 6' to ground/grade you must have a 42" minimum height to top of railing system.
- 4" between pickets maximum
- 4" between bottom rail and deck surface maximum
- No railing system can be built that facilitates climbing - ex: horizontal pickets
- Deck surface below 18" to ground/grade no railing is required under most conditions.
- Deck or Patio surface 18" - 6' above ground/grade you must have a 36" minimum height to the top of the railing system.
- Deck or Patio surface above 6' to ground/grade you must have a 42" minimum height to top of railing system.
- 4" between pickets maximum
- 4" between bottom rail and deck surface maximum
- No railing system can be built that facilitates climbing - ex: horizontal pickets
•
Railings are made out of aluminum which means a lifetime of no maintenance.
•
A variety of railing design styles to choose from, picket, glass, top rail, decorative.
•

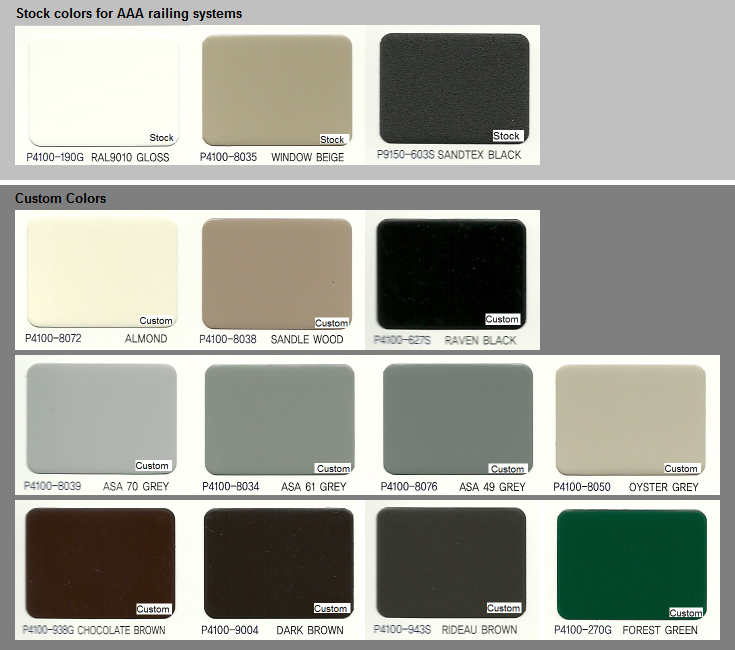

Custom colours to match your residential home or commercial building. Professional deck railing installation backed with our guarantee of quality and worksmanship.
•
Our railings like all of our products are completely engineered to meet or exceed North American standards.
•
Fascia mount railings are readily available and a must to protect vinyl deck surfaces.
•
All of our aluminum railing products are fully guaranteed and come with the best warranties in the business.
Home is our sanctuary. Make the most of your outdoor living space while still maintaining your privacy with an outdoor Privacy or Wind Wall. Whether it be to shield you from a neighbour, a street or to block an unsightly view, outdoor privacy & wind walls are an economical and stylish solution.
Referred to as outdoor privacy screens or privacy fencing as well as wind walls our designed and engineered privacy walls for decks and patios will create a peaceful haven right in your own backyard. Outdoor privacy panels not only create privacy, they expand your existing living area by adding more usable space.
We can design, engineer, manufacture and install your privacy and wind wall solutions to our high standards for structural integrity and appealing color schemes and esthetics. Quality of life and privacy are wonderful attributes for the place you call home. An outdoor privacy wall will enhance your outdoor living experience!
•
Outdoor privacy designs to match your existing deck, patio cover and building color schemes.
•
Lifetime "Aluminum" Privacy Walls means no maintenance.
•
A variety of glass to choose from: tinted, obscure, decorative.
•
Can be directly incorporated into any of our railing systems.
•
Aluminum and Glass Privacy and Wind Walls can be used in a variety of outdoor use applications.
Features
Wind and Privacy walls can be built up to 5 feet in height. You can fill the structure with frosted or tinted glass. All the glass we use on any projects is 6mm thick and tempered. Tempered glass is also known as safety glass as it will not break into sharp chards in the event of accidentally breakage. This is the same glass used in sliding glass doors and has a very high tensile strength.
Privacy & Wind Walls
•
All our decks will be installed with the Aluminum powder coated railing system for a maintenance free deck.
•
We design and submit all permits to the city.
•
We do it all, deck repairs, construction, railing and awning installs, you don't have to deal with multiple trades.
•
No construction mess or multiple trades coming and going.
•
Limited Lifetime warranty
Features
We have 17 years of deck construction experience. Need a new deck designed and built or repaired and upgraded? We can take care of all your needs.
All our work is of the highest standards and built to code. We will give you several options depending on your needs. We build with our local weather and environment in mind to help reduce maintenance and deterioration of the deck substructures.
We can design your deck with any of our awning and railing systems as part of the finished product, then we will submit for work permit and do all the leg work with the city.
Have us build your dream outdoor living area.
All our work is of the highest standards and built to code. We will give you several options depending on your needs. We build with our local weather and environment in mind to help reduce maintenance and deterioration of the deck substructures.
We can design your deck with any of our awning and railing systems as part of the finished product, then we will submit for work permit and do all the leg work with the city.
Have us build your dream outdoor living area.
Deck Construction & Repairs
Products
CR decks and railings is a certified Duradek dealer and installer in the Campbell River area.
DURADEK Waterproof Vinyl Roof & Walking Deck Membrane
Since 1974, over 125 million sq. ft. of Duradek vinyl membranes have been installed by trained, professional applicators on roof decks, sundecks, balconies, patios and verandas in all North American climates.
With an industry leading 10-year warranty, Duradek's proven system, unique installation techniques and decades of experience provide waterproofing you can trust. Discover the Duradek difference and find out why after 40 years Duradek is still your best choice for low maintenance outdoor living space.
Vinyl Decking Installations
•
Permanent waterproof protection
•
For sundecks, roofdecks, balconies & other areas
•
Available in many stylish colors, patterns & textures
•
Industry-leading 10-Year Warranty
Duradek 40 years a leader pdf
10 Year Duradek warranty pdf
The only apperance warranty in the industry
The only apperance warranty in the industry
Campbell River Decks & Railings
250.895.9177
Serving: Campbell River, Quadra Island and Area
20 year warranty on railings
10 Year warranty on Vinyl decking
10 Year warranty on Vinyl decking
One call does it all...
